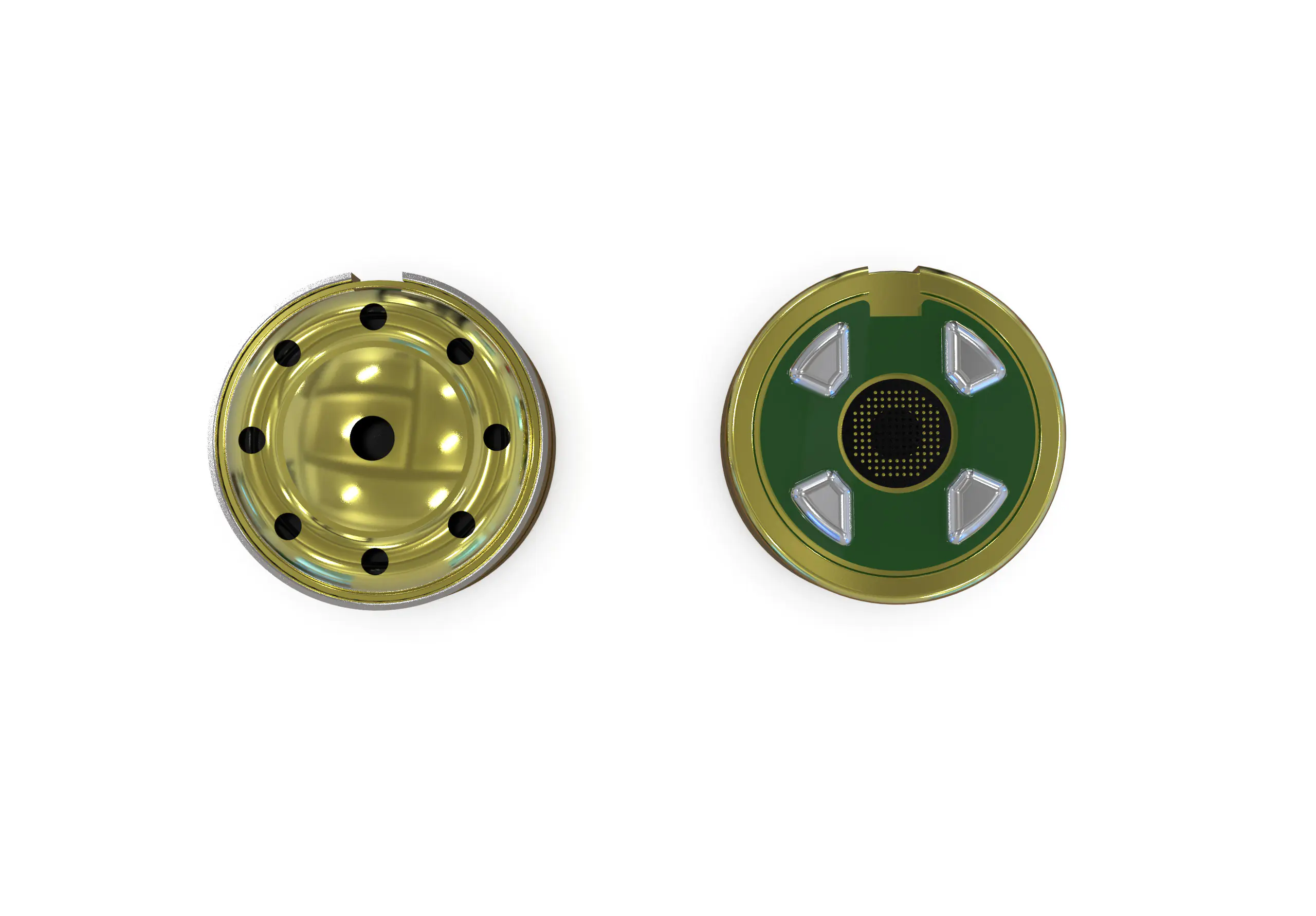

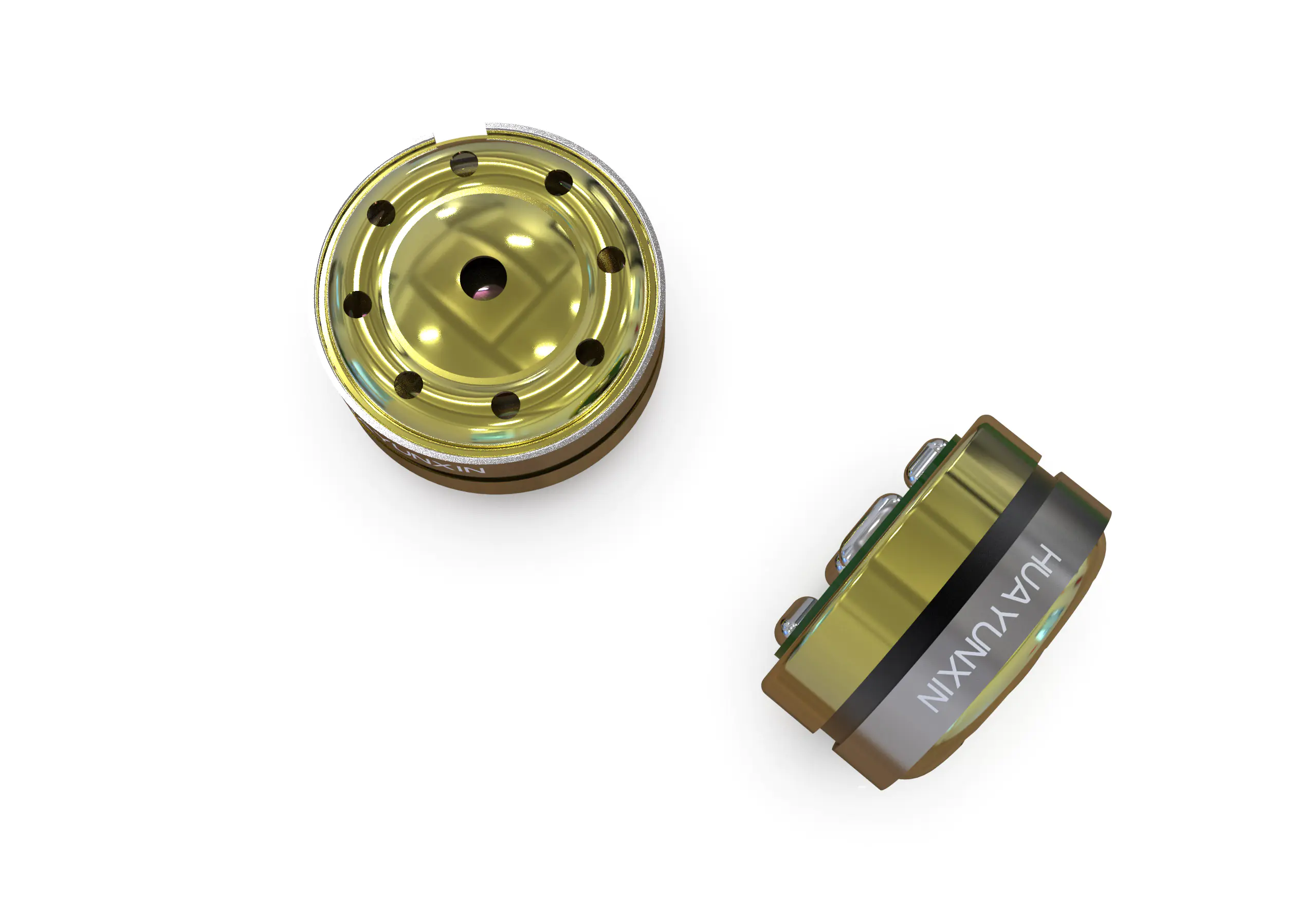

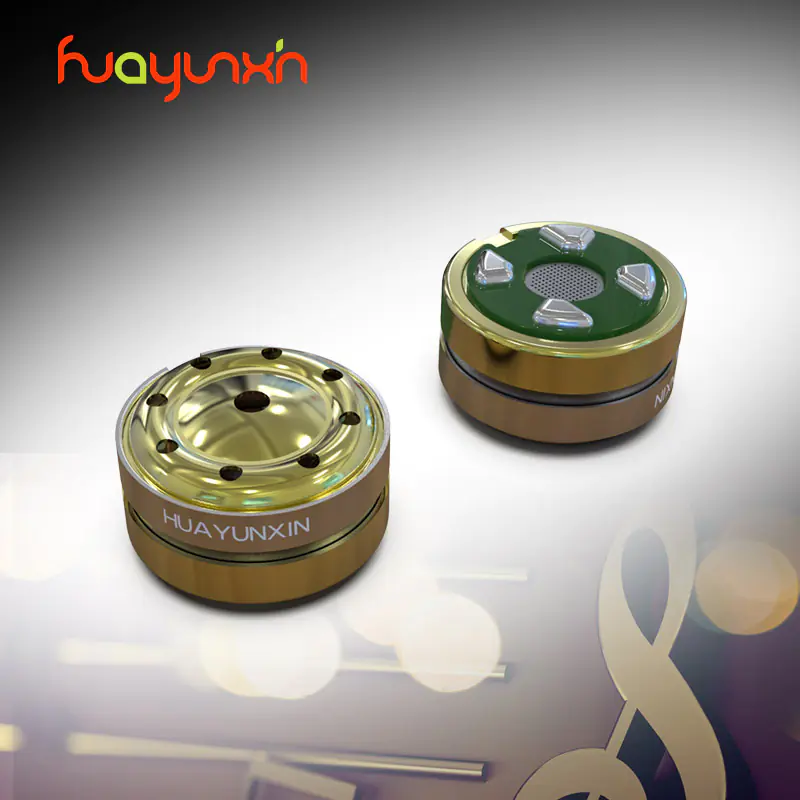

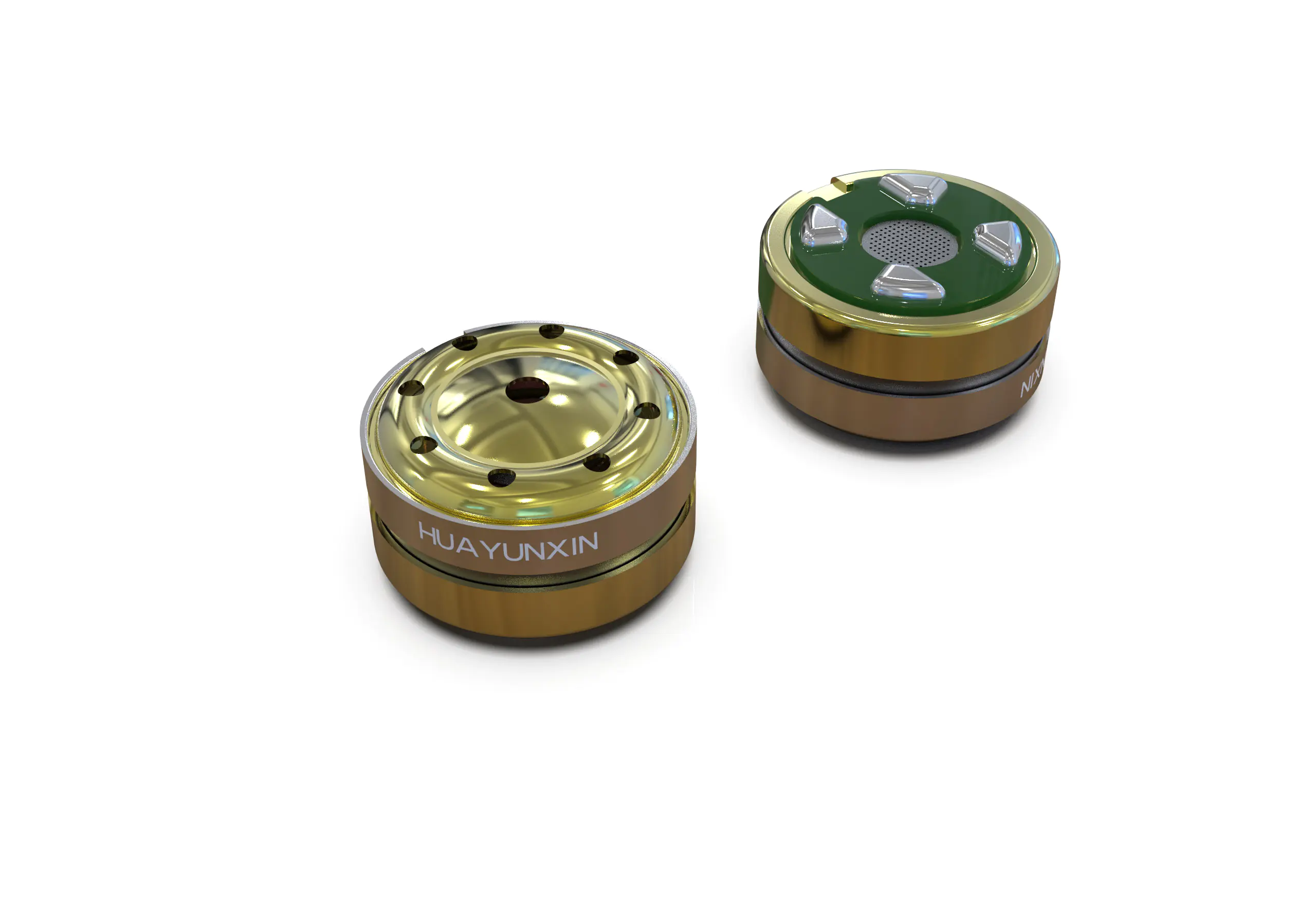

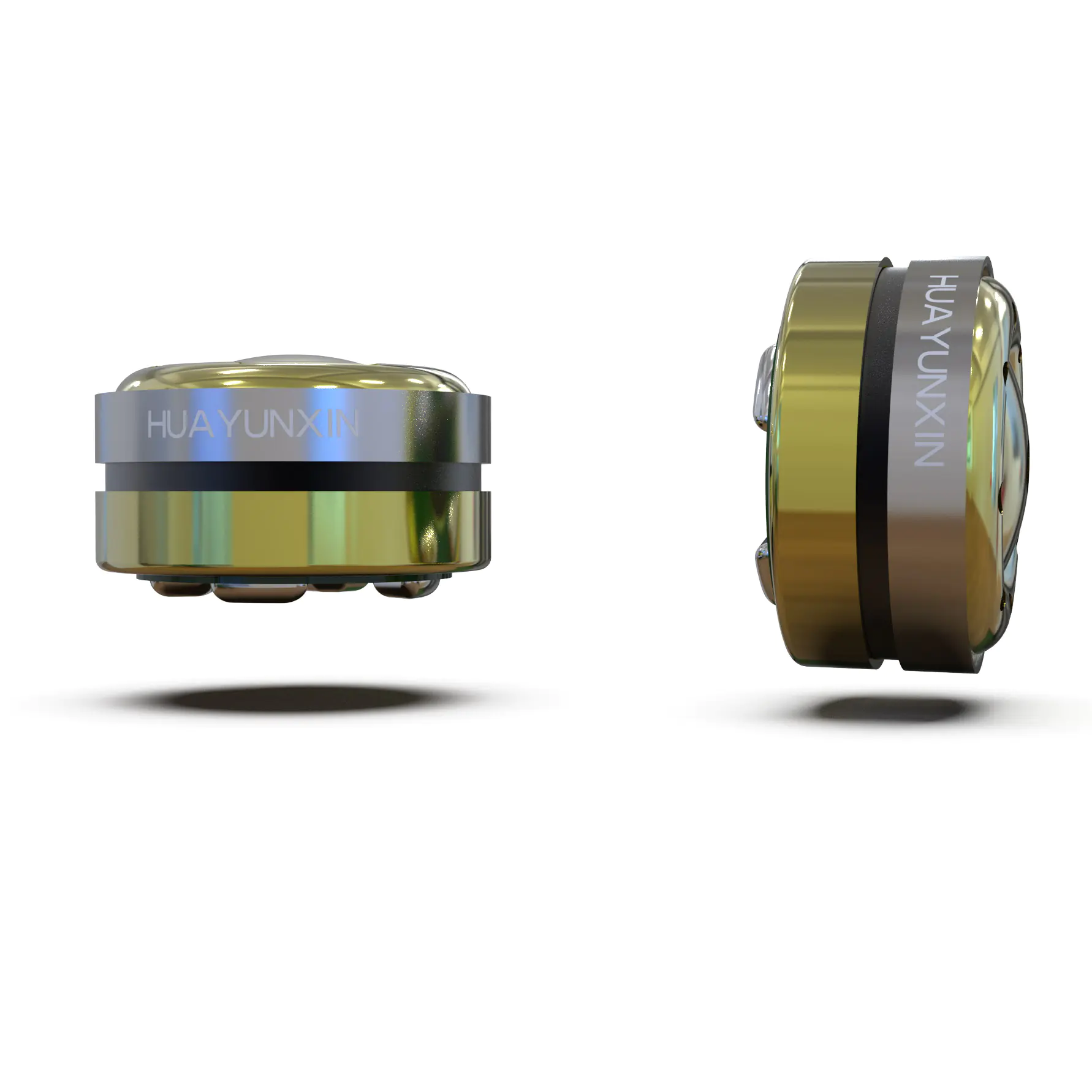

HUAYUNXIN HTR10 Speaker Driver
Product Features
- 1.5T Ultra-Magnetic Drive System: Dual high-flux NdFeB (Neodymium Iron Boron) magnetic circuit design achieves a magnetic flux density of up to 1.5T. Paired with an ultra-high sensitivity of 113 dB/mW, it delivers powerful driving force and lightning-fast transient response.

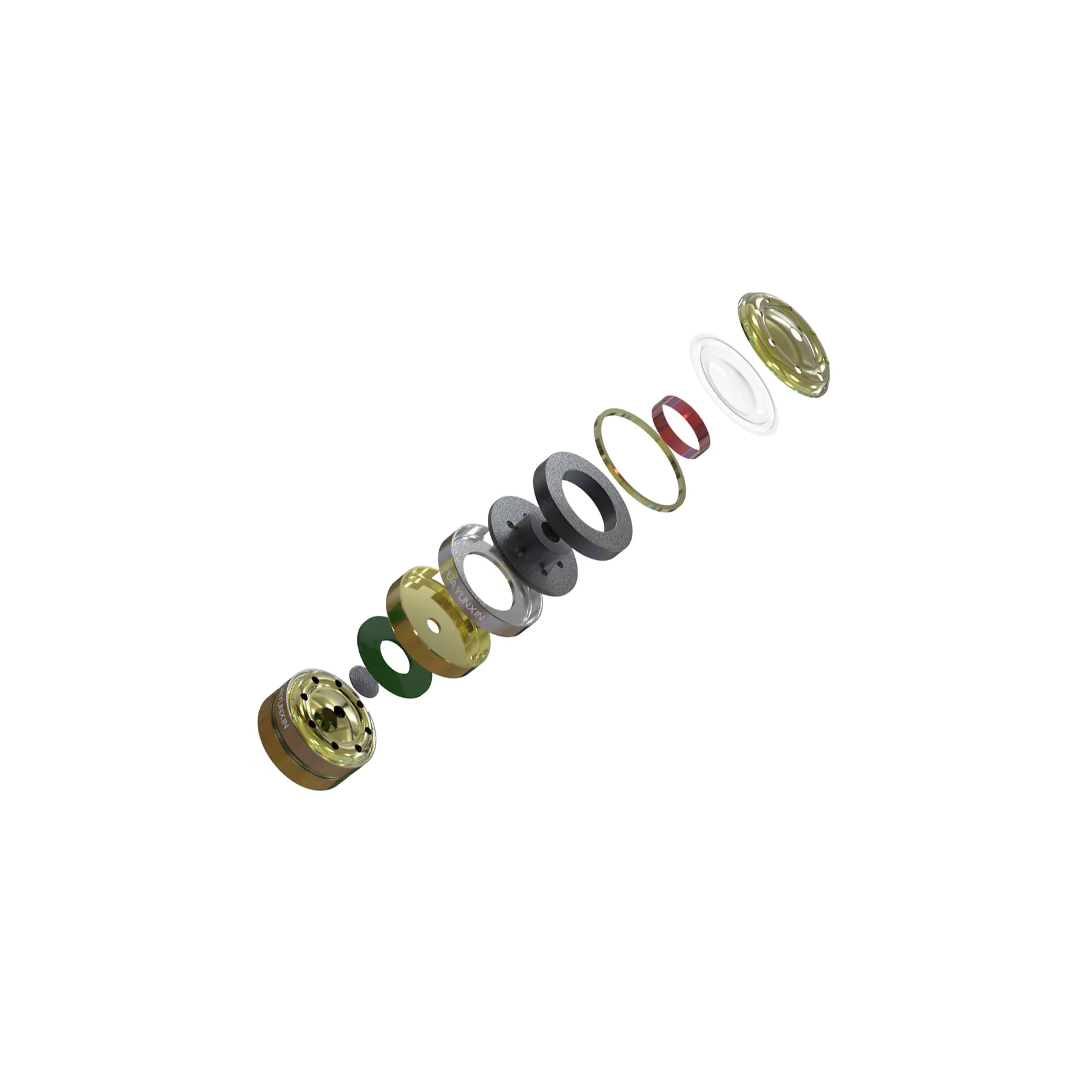

- PAR High-Rigidity Diaphragm & Premium Components: Features imported Japanese Daikoku copper-clad aluminum (CCAW) voice coils combined with a PAR high-performance diaphragm, ensuring efficient acoustic energy conversion, high resolution, ultra-low distortion, and pristine full-frequency Hi-Fi sound quality.
- Helmholtz Dual-Chamber Airflow Balancing Technology: Incorporates a Helmholtz dual-chamber design to precisely optimize internal airflow, enabling deeper low-frequency extension and deliver natural, impactful bass.
- Precision CNC & Suspended Lead Wire: Full-metal components are CNC-machined with ultra-tight tolerances. Utilizes a suspended lead wire design to effectively minimize resonance interference for a purer audio signal.
- Versatile Application Scenarios: Compact 10mm outer diameter makes it ideally suited for multi-driver Hi-Fi earphones, bone conduction headphones, hearing aids, and professional assistive listening devices.

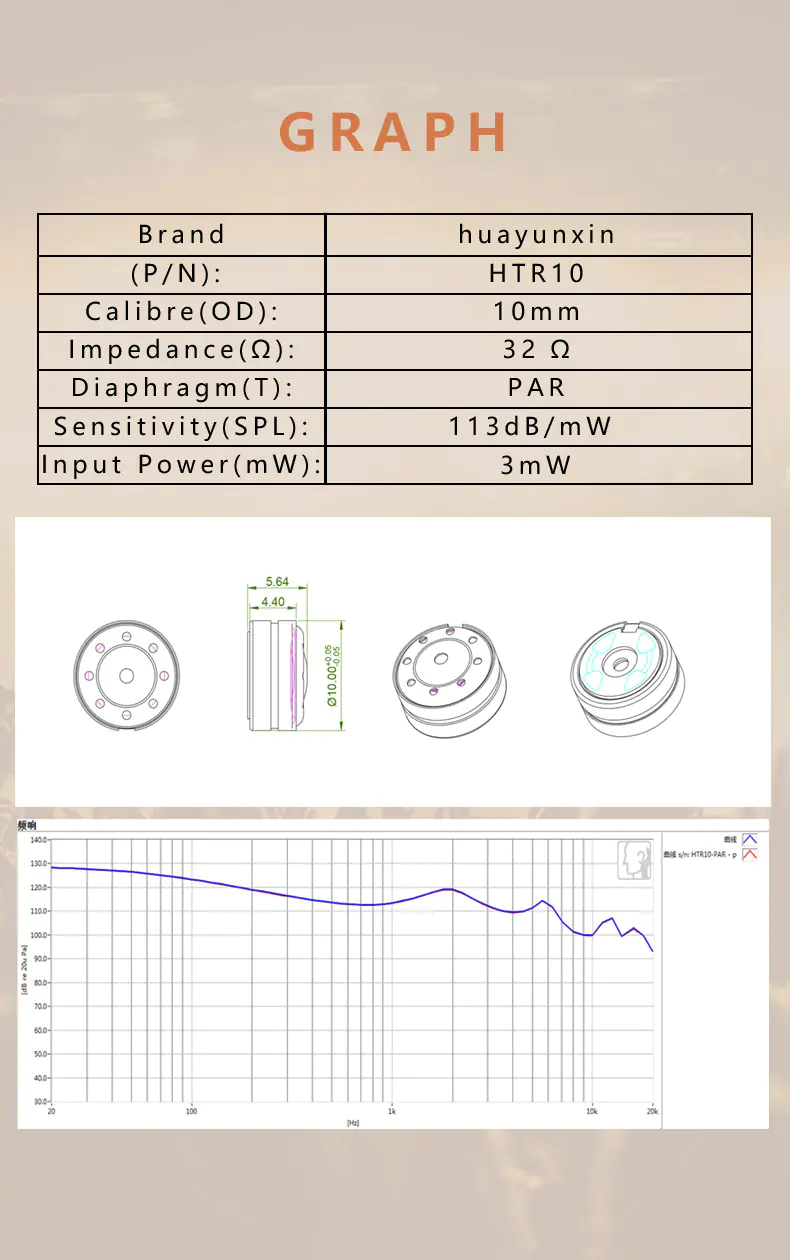

Specifications
| Model | HTR10 |
| Diameter | 10 mm |
| Thickness | 5.64 ± 0.05 mm |
| Impedance | 32 Ω |
| Diaphragm | PAR |
| SPL | 113 dB/mW |
| Input Power | 3 mW |
Our Factory
Frequently Asked Questions
Q: Do you offer OEM/ODM services and custom acoustic tuning?
A: Yes, we provide full OEM and ODM solutions. We offer two types of customization. The first requires a minimum order of just 2 units, selecting from our extensive range of existing materials (like building blocks). The second is a full customization requiring new molds, where the MOQ and delivery time depend on the development difficulty. We can customize coil size, diaphragm materials (such as PEEK, LCP, Titanium, CNTS), and the overall housing design.
Q: What is your Minimum Order Quantity (MOQ) and lead time?
A: For products where we already have the materials in stock, our MOQ is as low as 2 units. For most of our standard models, the MOQ is 100 pieces. Sample orders typically take 3-5 working days, while bulk production lead time is about 10-25 working days.
Q: Are the prices listed on your website for a single unit or a pair?
A: All the prices listed on our website are for a single driver unit, not a pair.
Q: Can I get samples for testing before placing a bulk order?
A: Yes! You can easily purchase samples directly through our official website. Please note that while we do not provide free samples, the sample cost will be fully deducted from your future bulk invoice.
Q: What types of audio drivers do you manufacture?
A: Our product range is diverse, including high-performance dynamic drivers, bone conduction drivers, and planar drivers. They are widely used in HiFi earphones (IEMs), headphones, aviation headsets, and Bluetooth devices.
Q: What are your manufacturing capabilities?
A: We have 19 years of experience in loudspeaker production and research, operating a facility of over 5000 square meters. Combined with China’s mature supply chain and our state-of-the-art CNC precision machining, we offer high-quality products and highly efficient production.
