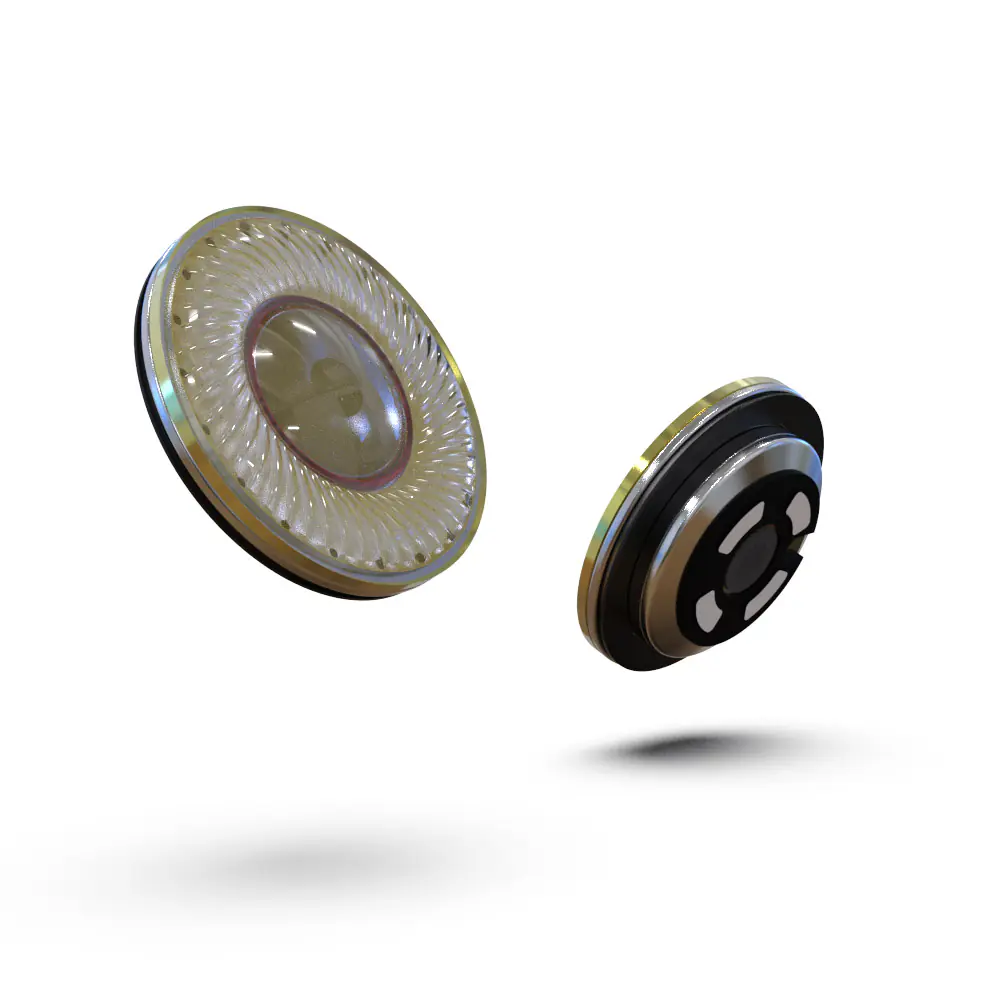

HUAYUNXIN HT154-1 Speaker Driver
Product Features
- Topological Diaphragm Technology & High-Resolution Sound Quality：Features a Topological Diaphragm design that imparts a naturally relaxed surface tension, harmonizing exceptional musicality with razor-sharp resolution. Enhanced by high sensitivity and an expansive soundstage, it reproduces intricate acoustic details with extreme fidelity, making it ideal for single-driver Hi-Fi earphone solutions.
- 1.8T Tesla Dual Magnetic Circuit System：Equipped with a powerful dual-magnetic architecture achieving a magnetic flux density of up to 1.8 Tesla. The ultra-strong magnetic drive provides massive propulsion to the diaphragm, delivering superior dynamic range, transient speed, and distinct sound layering.
- Helmholtz Dual-Chamber Design & Precision CNC Components：The structural design integrates Helmholtz dual-chamber airflow balance technology to effectively regulate internal cavity pressure. Combined with precision CNC-machined all-metal components, it guarantees ultra-tight manufacturing tolerances and creates a highly stable acoustic environment.
- Flagship Acoustic Parameters & High-Impedance Engineering：Designed with a 15.4mm outer diameter, 300Ω benchmark high impedance, and 118dB/mW sensitivity (5mW input power). It yields an extended, highly consistent frequency response curve to satisfy professional driving requirements and audiophile tuning standards.
Specifications
| Model | HT154-1 |
| Diameter | 15.4 mm |
| Thickness | 4.20 ± 0.1 mm |
| Impedance | 300 Ω |
| Diaphragm | topological diaphragm |
| SPL | 118dB/mW |
| Input Power | 5 mW |
Our Factory
Frequently Asked Questions
Q: Do you offer OEM/ODM services and custom acoustic tuning?
A: Yes, we provide full OEM and ODM solutions. We offer two types of customization. The first requires a minimum order of just 2 units, selecting from our extensive range of existing materials (like building blocks). The second is a full customization requiring new molds, where the MOQ and delivery time depend on the development difficulty. We can customize coil size, diaphragm materials (such as PEEK, LCP, Titanium, CNTS), and the overall housing design.
Q: What is your Minimum Order Quantity (MOQ) and lead time?
A: For products where we already have the materials in stock, our MOQ is as low as 2 units. For most of our standard models, the MOQ is 100 pieces. Sample orders typically take 3-5 working days, while bulk production lead time is about 10-25 working days.
Q: Are the prices listed on your website for a single unit or a pair?
A: All the prices listed on our website are for a single driver unit, not a pair.
Q: Can I get samples for testing before placing a bulk order?
A: Yes! You can easily purchase samples directly through our official website. Please note that while we do not provide free samples, the sample cost will be fully deducted from your future bulk invoice.
Q: What types of audio drivers do you manufacture?
A: Our product range is diverse, including high-performance dynamic drivers, bone conduction drivers, and planar drivers. They are widely used in HiFi earphones (IEMs), headphones, aviation headsets, and Bluetooth devices.
Q: What are your manufacturing capabilities?
A: We have 19 years of experience in loudspeaker production and research, operating a facility of over 5000 square meters. Combined with China’s mature supply chain and our state-of-the-art CNC precision machining, we offer high-quality products and highly efficient production.
