HUAYUNXIN Hmax Speaker Driver
Product Features

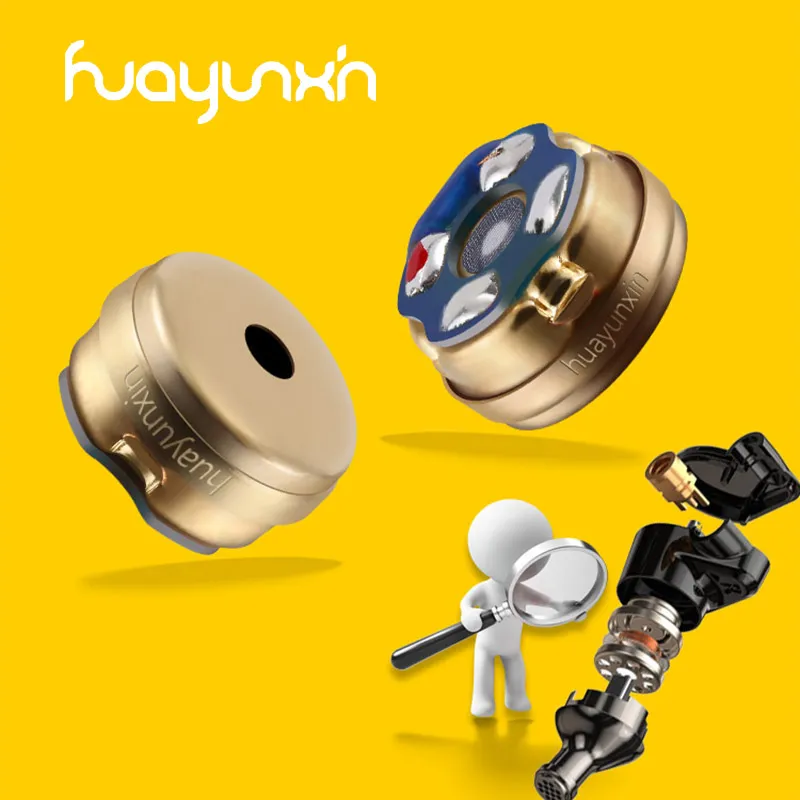

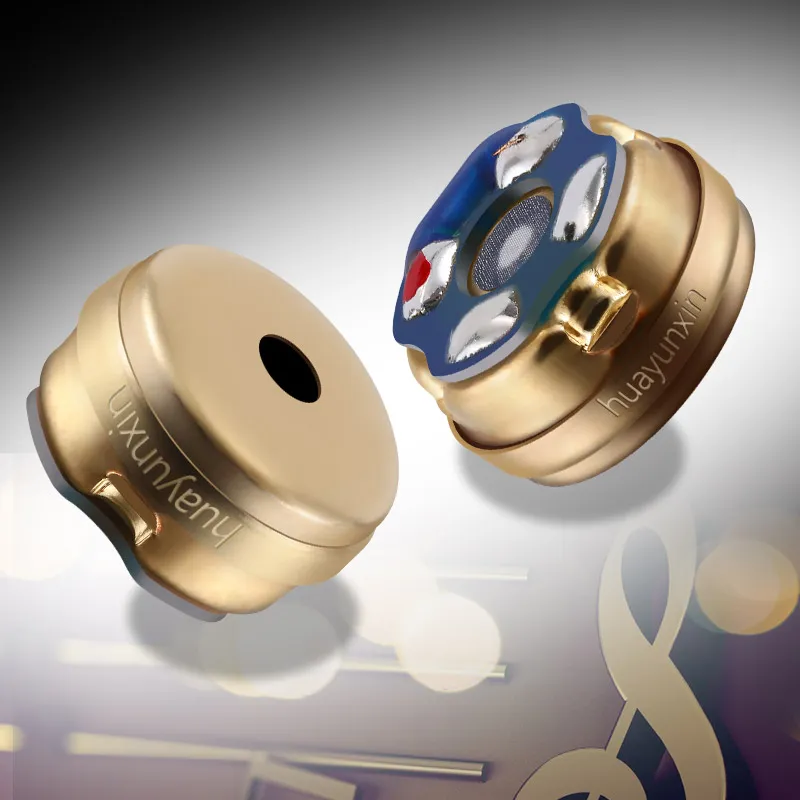

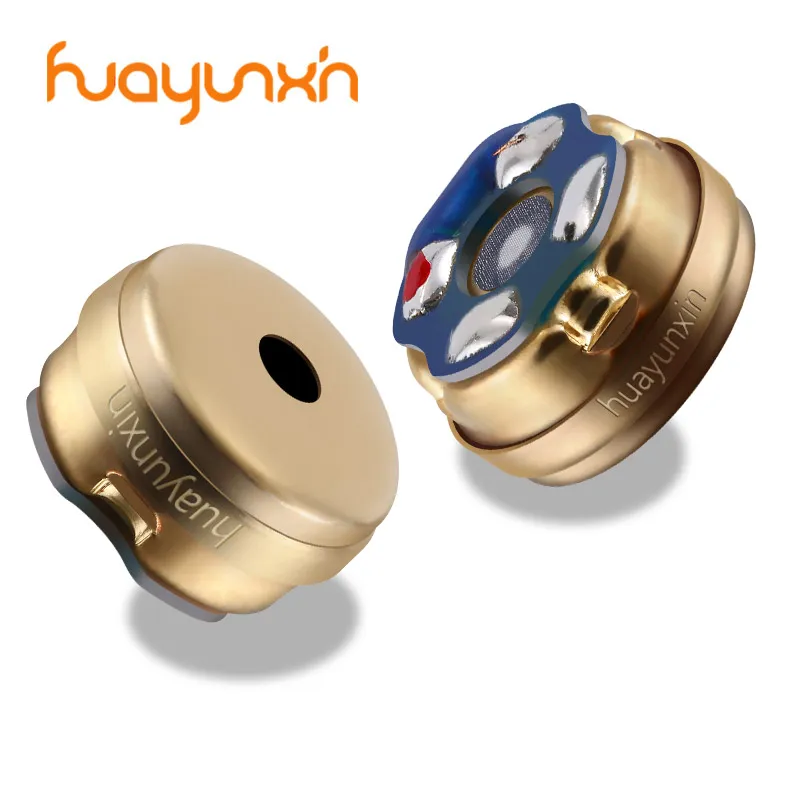

- 10mm Double-Chamber Dynamic Driver The Hmax is a new upgraded 10mm double-chamber micro dynamic driver built for Hi-Fi in-ear headphones, delivering detailed, spacious sound.
- 1.2T Nd-Fe-B Magnetic Circuit The unit adopts a 1.2T Nd-Fe-B magnet with natural magnetic density, providing a strong, stable magnetic field.
- Three-Cavity Design A three-cavity structure eliminates magnetic field loss and achieves zero magnetic-field leakage for maximum motor efficiency.
- Ultra-Wide Frequency Response Low frequencies reach down to 8Hz and highs extend up to 45kHz, offering an ultra-wide range, super-fast transient response and large dynamic range.

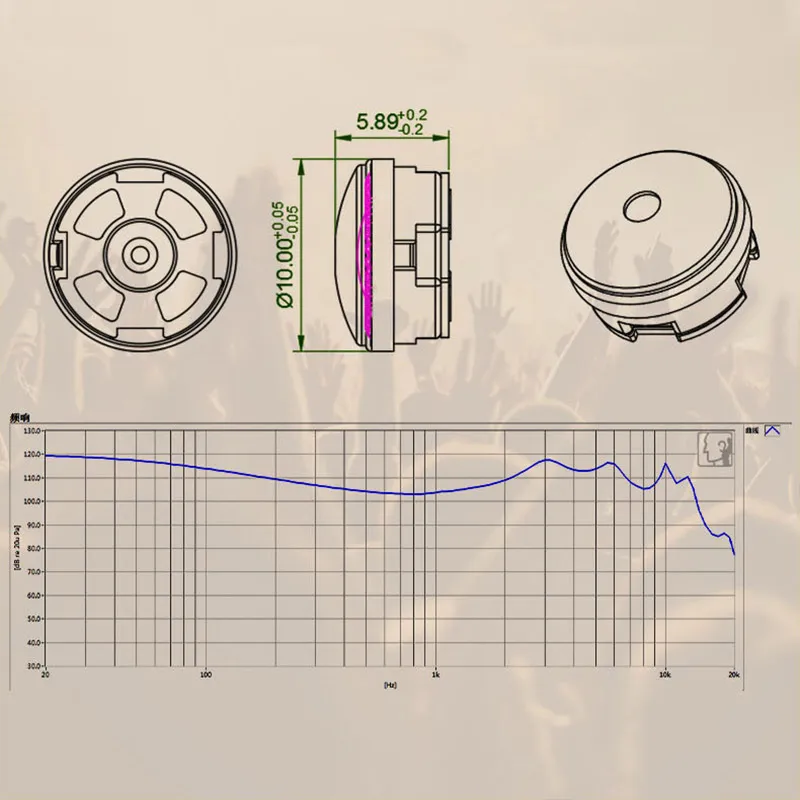

- Compact, Easy-to-Integrate Size At Ø10.00 ±0.05mm with a height of 5.89 ±0.2mm, it fits a wide range of custom and production earphone shells.
- Premium Gold Metal Housing The rigid gold metal shell is resonance-resistant, with a precision rear sound port and matched internal components for a premium look and stable performance.
- Widely Recommended A shop-recommended product, widely favored across Hi-Fi headphones for its refined, high-performance sound.
Specifications
| Model | Hmax |
| Diameter | 10 mm |
| Thickness | 5.89 mm |
| Impedance | 16 Ω |
| Diaphragm | MX |
| SPL | 103 dB/mW |
| Input Power | 3 mW |
Our Factory
Frequently Asked Questions
Q: Do you offer OEM/ODM services and custom acoustic tuning?
A: Yes, we provide full OEM and ODM solutions. We offer two types of customization. The first requires a minimum order of just 2 units, selecting from our extensive range of existing materials (like building blocks). The second is a full customization requiring new molds, where the MOQ and delivery time depend on the development difficulty. We can customize coil size, diaphragm materials (such as PEEK, LCP, Titanium, CNTS), and the overall housing design.
Q: What is your Minimum Order Quantity (MOQ) and lead time?
A: For products where we already have the materials in stock, our MOQ is as low as 2 units. For most of our standard models, the MOQ is 100 pieces. Sample orders typically take 3-5 working days, while bulk production lead time is about 10-25 working days.
Q: Are the prices listed on your website for a single unit or a pair?
A: All the prices listed on our website are for a single driver unit, not a pair.
Q: Can I get samples for testing before placing a bulk order?
A: Yes! You can easily purchase samples directly through our official website. Please note that while we do not provide free samples, the sample cost will be fully deducted from your future bulk invoice.
Q: What types of audio drivers do you manufacture?
A: Our product range is diverse, including high-performance dynamic drivers, bone conduction drivers, and planar drivers. They are widely used in HiFi earphones (IEMs), headphones, aviation headsets, and Bluetooth devices.
Q: What are your manufacturing capabilities?
A: We have 19 years of experience in loudspeaker production and research, operating a facility of over 5000 square meters. Combined with China’s mature supply chain and our state-of-the-art CNC precision machining, we offer high-quality products and highly efficient production.
