HUAYUNXIN RE8 Speaker Driver
Product Features
- 8mm Micro Dynamic Driver for IEMs A compact 8mm dynamic driver purpose-built for in-ear monitors, custom IEMs and CIEM builds — delivering full, detailed sound from an ultra-small footprint.
- Ultra-Slim 4.00mm Profile At just 4.00mm thick, it fits compact and custom-molded earphone shells without compromising acoustic performance.

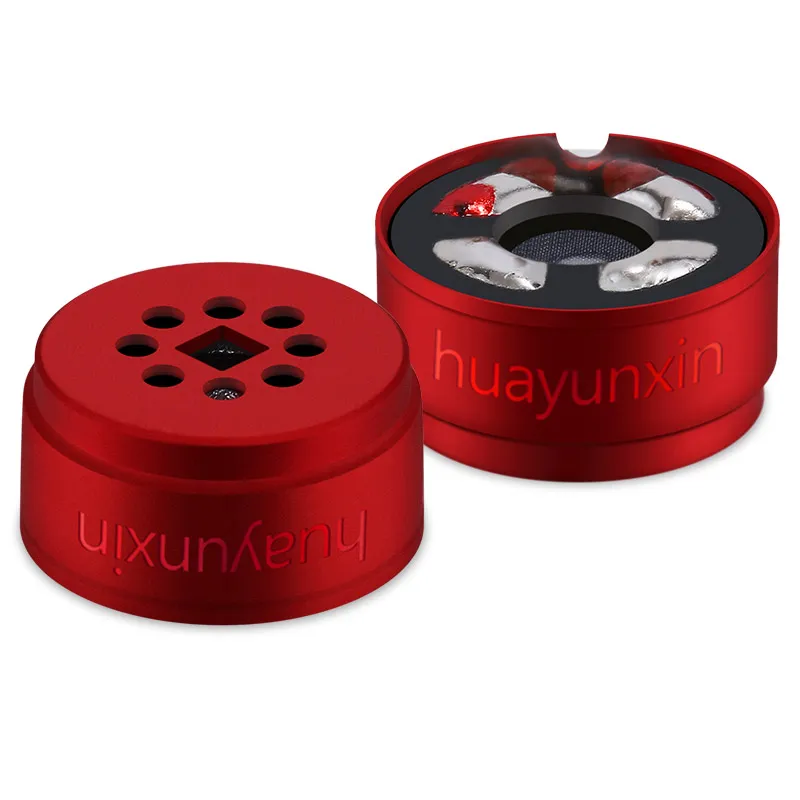

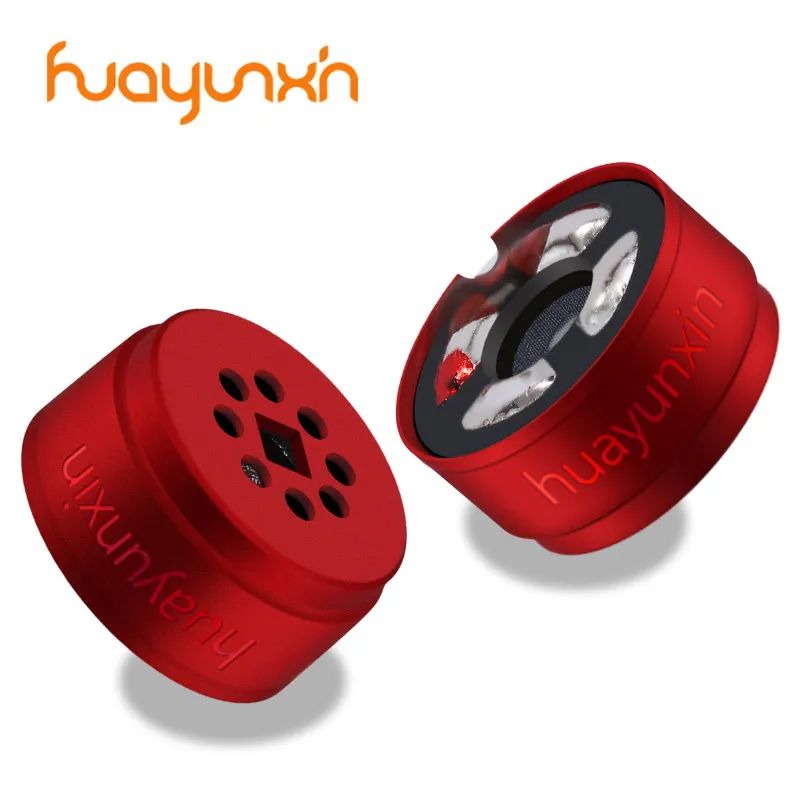

- Red Anodized Metal Housing The rigid CNC-machined, red anodized metal shell resists resonance and shields the motor system, while giving the driver a distinctive, premium look.
- Eight-Hole Precision Tuning The faceplate is machined with eight tuning vents arranged around the center, balancing internal air pressure for a smooth, controlled response and low distortion.
- High-Efficiency Magnetic Motor A carefully engineered magnetic circuit and internal cavity structure deliver strong driving force and stable diaphragm control for consistent, accurate sound.
- Balanced, Engaging Sound Tuned for rich, punchy bass, natural mids and clear extended highs, it offers a wide dynamic range and a smooth, fatigue-free listening experience.
- Easy Integration & Matched Pairing Pre-soldered lead connections and matched left/right units make assembly quick and reliable, with consistent tonal balance across both channels.
- Wide Application Ideal for Hi-Fi IEMs, stage in-ear monitors, custom earphones and premium wired earbuds.

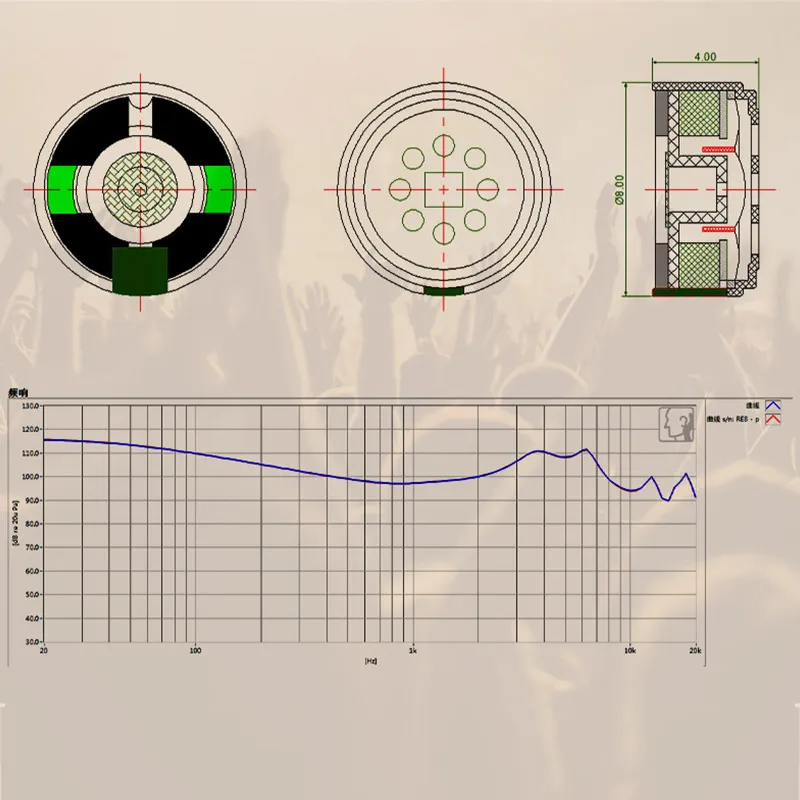

Specifications
| Model | RE8 |
| Diameter | 8 mm |
| Thickness | 4.00 mm |
| Impedance | 16 Ω |
| Diaphragm | CNTS/LDM/MX |
| SPL | 98 dB/mW |
| Input Power | 3 mW |
Our Factory
Frequently Asked Questions
Q: Do you offer OEM/ODM services and custom acoustic tuning?
A: Yes, we provide full OEM and ODM solutions. We offer two types of customization. The first requires a minimum order of just 2 units, selecting from our extensive range of existing materials (like building blocks). The second is a full customization requiring new molds, where the MOQ and delivery time depend on the development difficulty. We can customize coil size, diaphragm materials (such as PEEK, LCP, Titanium, CNTS), and the overall housing design.
Q: What is your Minimum Order Quantity (MOQ) and lead time?
A: For products where we already have the materials in stock, our MOQ is as low as 2 units. For most of our standard models, the MOQ is 100 pieces. Sample orders typically take 3-5 working days, while bulk production lead time is about 10-25 working days.
Q: Are the prices listed on your website for a single unit or a pair?
A: All the prices listed on our website are for a single driver unit, not a pair.
Q: Can I get samples for testing before placing a bulk order?
A: Yes! You can easily purchase samples directly through our official website. Please note that while we do not provide free samples, the sample cost will be fully deducted from your future bulk invoice.
Q: What types of audio drivers do you manufacture?
A: Our product range is diverse, including high-performance dynamic drivers, bone conduction drivers, and planar drivers. They are widely used in HiFi earphones (IEMs), headphones, aviation headsets, and Bluetooth devices.
Q: What are your manufacturing capabilities?
A: We have 19 years of experience in loudspeaker production and research, operating a facility of over 5000 square meters. Combined with China’s mature supply chain and our state-of-the-art CNC precision machining, we offer high-quality products and highly efficient production.
เจนรบ คงสำเภา –
We ordered 200 pairs for our entry-level monitor line. Unit-to-unit matching is remarkably tight — same FR, same sensitivity, no rejects in the batch. The red aluminum housing also looks premium on the production line. At this price point the performance-to-cost ratio is hard to beat. Will reorder for our next production run.
Mike Shore –
I bought two pairs for a custom IEM project and I’m genuinely impressed. For an 8mm driver the low-end extension is way better than I expected — tight, deep, and no muddy bloom. The CNTS diaphragm seems to do its job. Burned them in for about 30 hours and they just keep opening up. Already ordering more for my next build.
